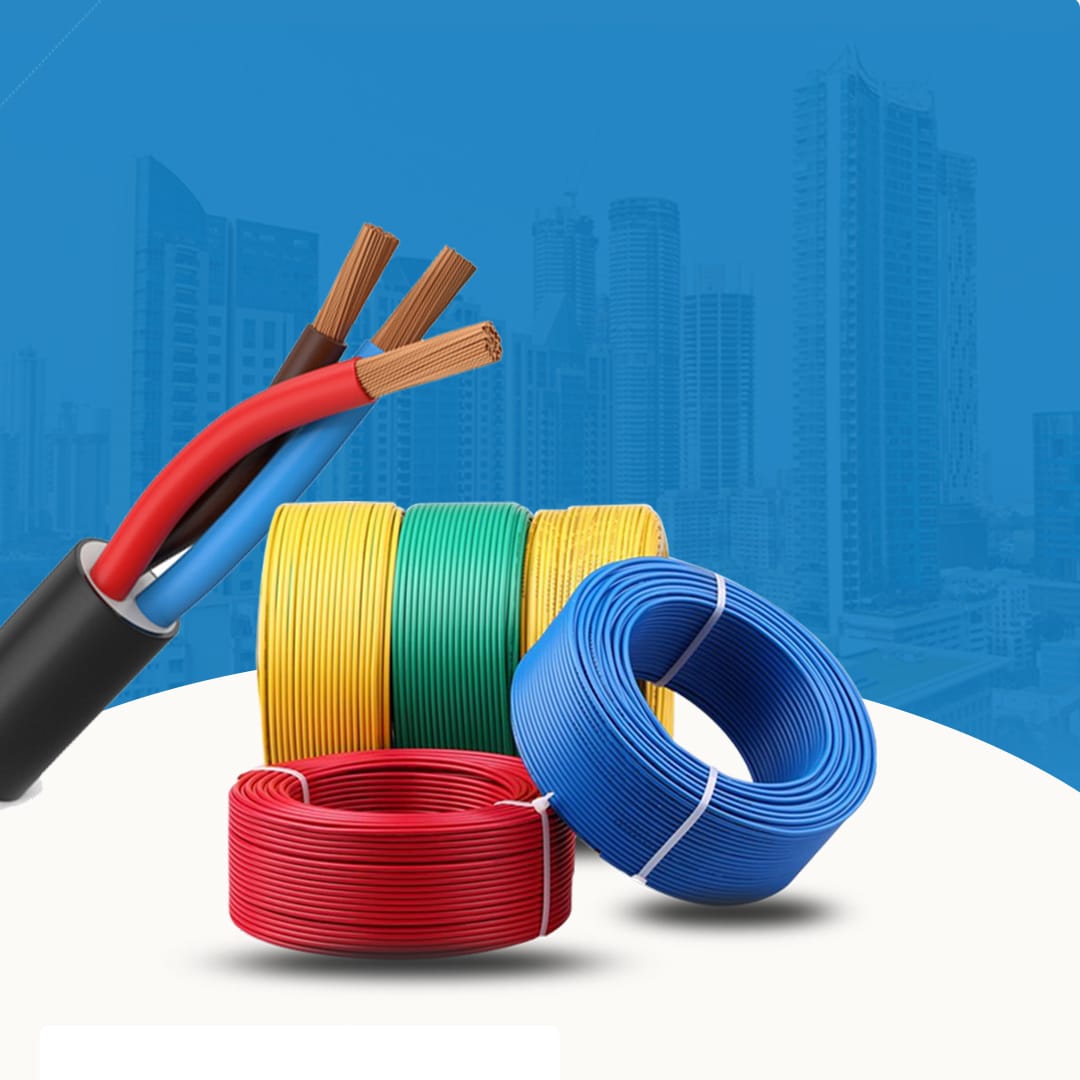

Triconix FR

Triconix FR offers cutting-edge fire-resistant solutions, prioritizing safety and reliability. Their innovative products are designed to withstand extreme temperatures, ensuring the protection of people, assets, and infrastructure. With a focus on quality and compliance, Triconix FR delivers trusted fire-resistant materials and systems for various industries, including construction, oil and gas, and manufacturing. Our robust range of flexible cables, engineered with leak-proof technology, effectively addresses these challenges. Designed to deliver seamless performance, they ensure reliable power distribution to even the most hard-to-reach corners.

Key Applications

Suitable for wiring in all types of residential and commercial infrastructure, where fire and electrical safety is utmost important.

Download Brochure

Technical Data

Approvals: IS 694 marked, FIA/TAC
Conductor: Thin strands of electrolytic copper are multi-drawn for uniformity of resistance, dimension and flexibility. The strands are twisted with high precision to impart circularity for the conductor.
Insulation Conformity: IS 5831, Type A/D FR 70°C
Marking : The cables are printed with marking of TRICONIX FR' from 1 Sq. mm to 16 Sq. mm.

Voltage Grade: Up to and including 1100V
Insulation: Specially formulated flame retardant PVC insulation is used. The FR property retards the propagation of flame without compromising safety.
Colours : Red, yellow, blue, black, green, grey & white
Packing : 90 mtr. coil is packed in protective cartons upto size 6 Sq. mm. Project packing of 180 mtr. also available.

Cable Design Parameters

Kindly complete the part numbers for these cables by adding the suffix (in place of 'xx') for the colour required: 01 - green, 02 - black, 03 - red, 04 - blue, 05 - yellow, 06 - grey, 07 - white.

Part Number	Nominal Cross Sectional Area (Sq. mm)	Nominal Insulation Thickness (mm)	Number *Nominal Dia. of Strands	Approx. Overall Diameter (mm)	Max. DC Conductor Resistance at 20°C (Ω/km)	Current Rating (Amps)
						Casing	Concealed
01010102xx20	0.75**	0.6	24/0.2	2.3	26.0	9	8
01010103xx20	1	0.7	14/0.3	2.7	18.1	14	13
01010104xx20	1.5	0.7	22/0.3	3.0	12.1	18	16
01010105xx20	2.5	0.8	36/0.3	3.7	7.41	24	20
01010106xx20	4**	0.8	56/0.3	4.1	4.95	30	26
01010107xx20	6**	0.8	84/0.3	4.6	3.30	38	33
01010108xx20	10**	1.0	140/0.3	7.0	1.91	52	45
01010109xx20	16**	1.0	126/0.4	8.1	1.21	70	60
Conductor as per IS 8130 *Insulation Type D as per IS 5831

Properties

Test	Test Method	Values
Limited Oxygen Index	IS 10810 P-58	> 29%
Limited Temp. Index	IS 10810 P-64	>250 °C
